New pump series for the industrial and mobile markets. Features a load sense compensator, 4000 PSI rating, and higher shaft speeds.

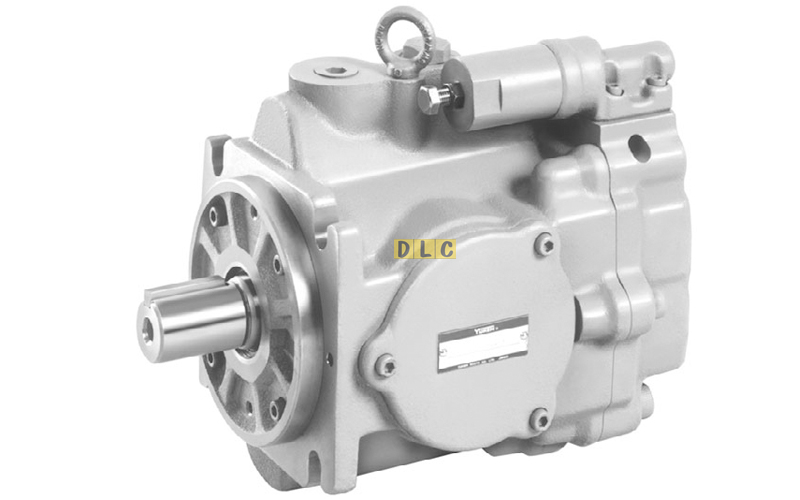

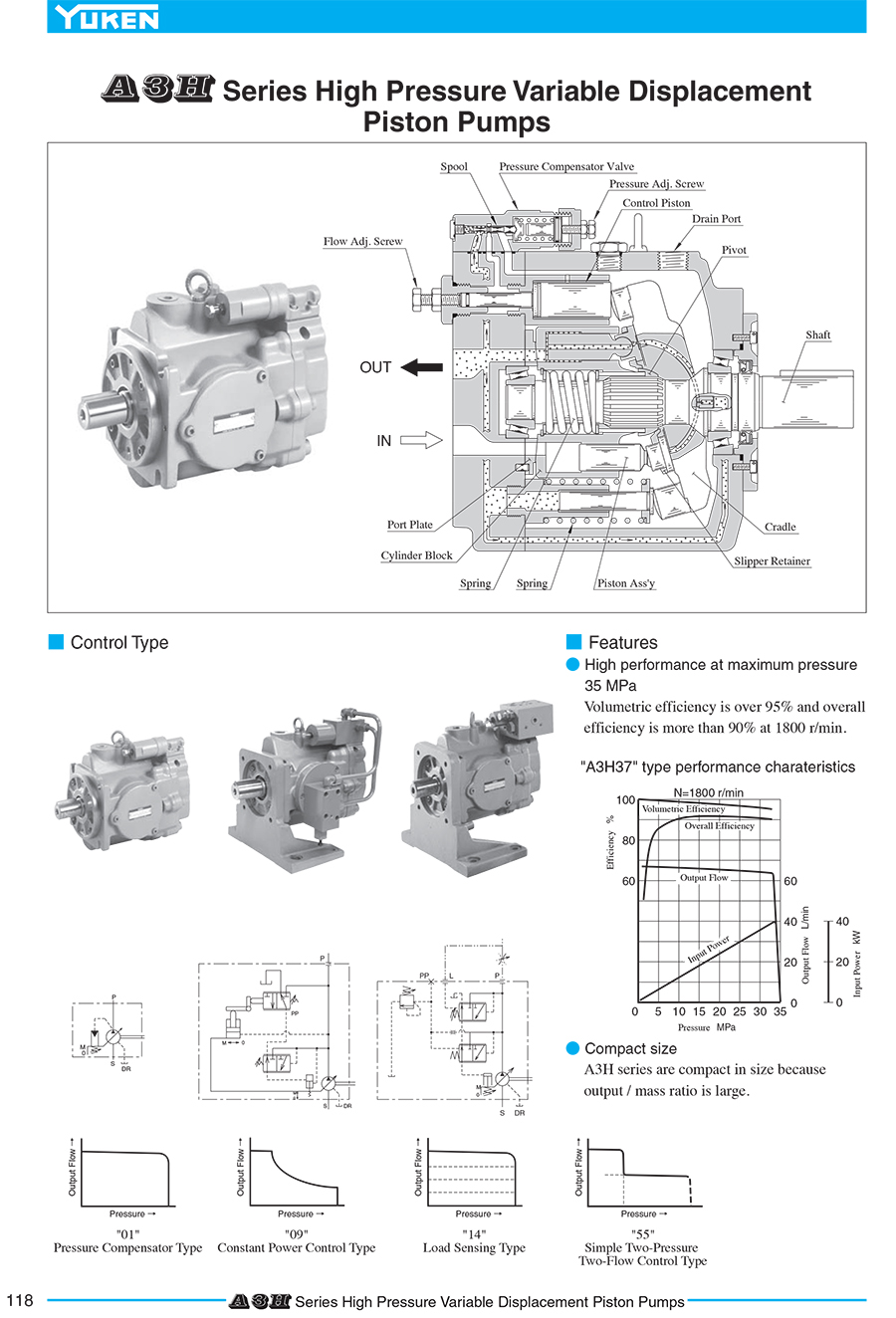

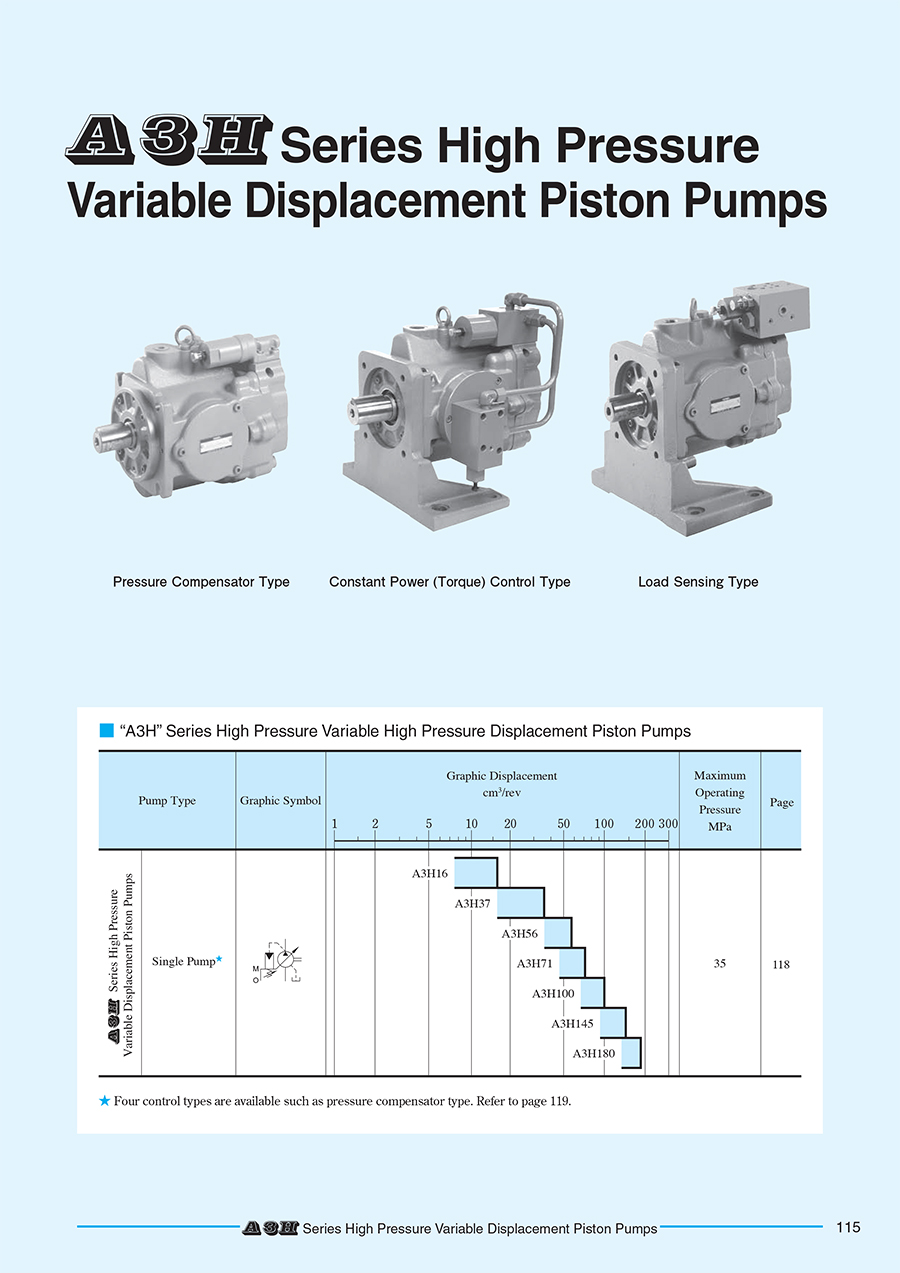

- Variable displacement piston pumps offer high pressure, high performance in a simple and compact package.

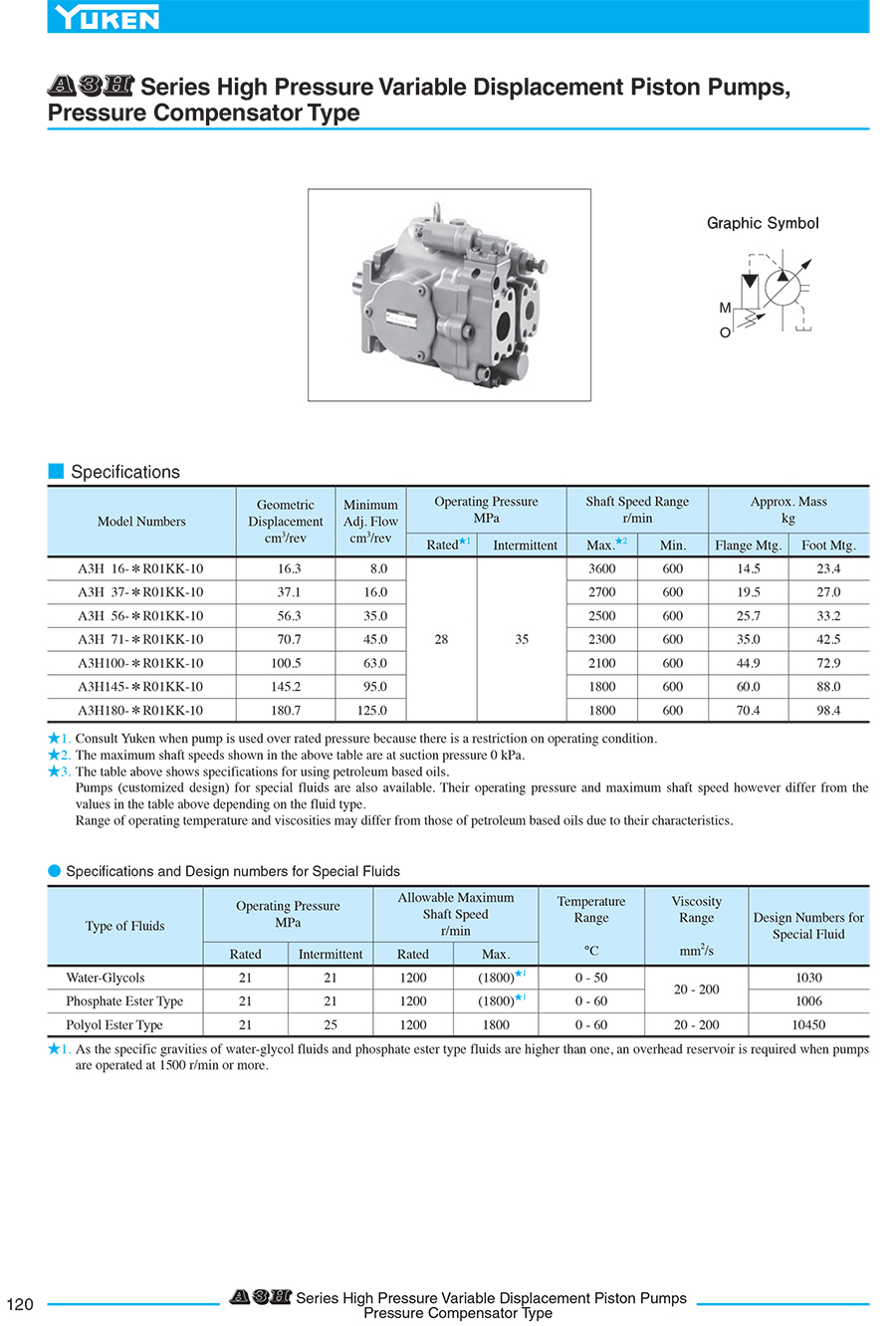

High Pressure: 35 MPa (5080 PSI)
- High volumetric efficiency
- These pumps maintain a high volumetric efficiency, even at a pressure of 35 MPa (5080 PSI).
- Available in a wide range of displacements
- Seven models are available in displacements ranging of 16.3 to 180.7 cm3/rev (.995 to 11.03 cu. in./rev).

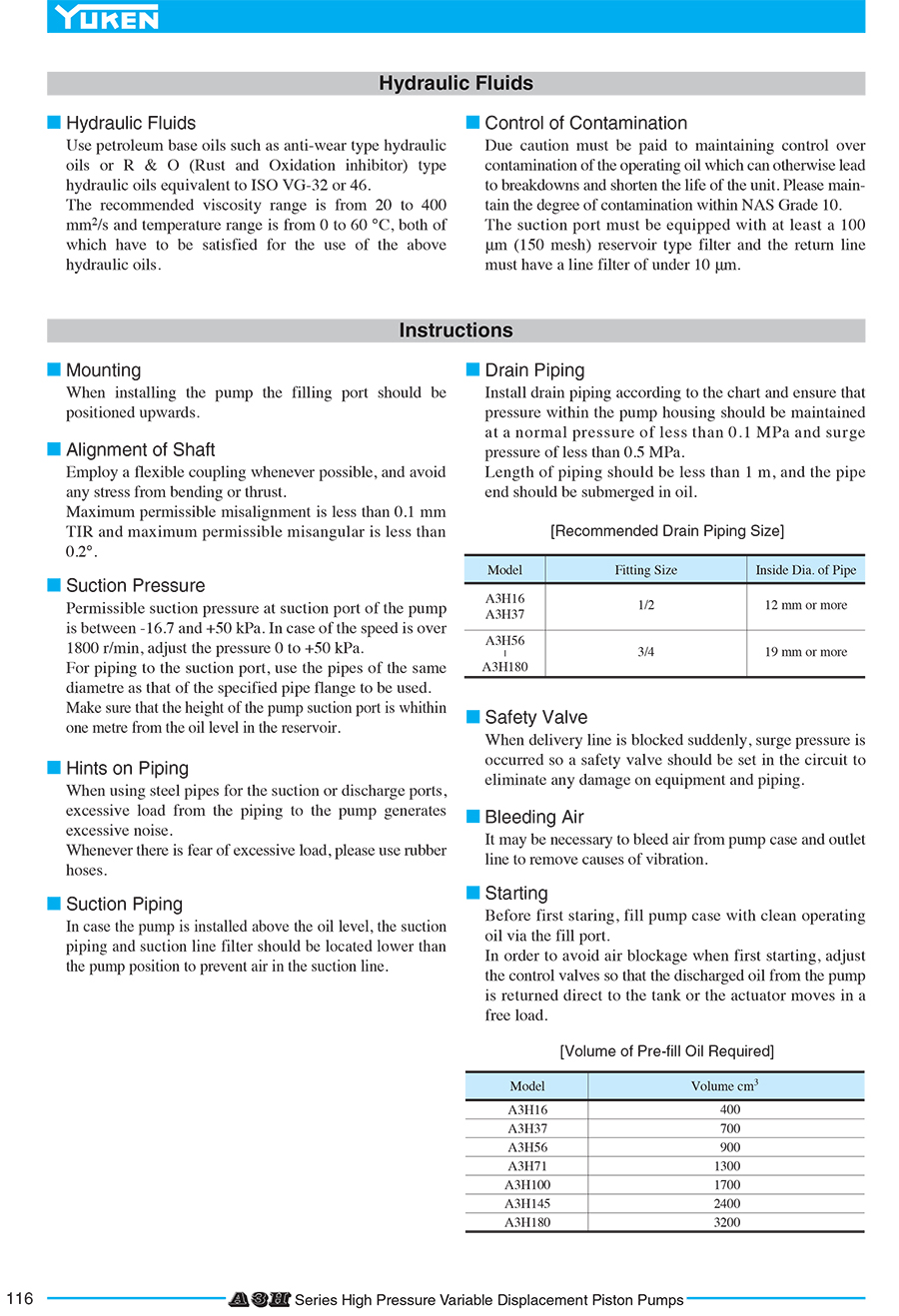

Hydraulic Fluids
Use petroleum base oils such as anti-wear type hydraulic oils or R & O (Rust and Oxidation inhibitor) type hydraulic oils equivalent to ISO VG-32 or 46. The recommended viscosity range is from 20 to 400 mm2/s and temperature range is from 0 to 60 °C, both of which have to be satisfied for the use of the above hydraulic oils.
Control of Contamination
Due caution must be paid to maintaining control over contamination of the operating oil which can otherwise lead to breakdowns and shorten the life of the unit. Please maintain the degree of contamination within NAS Grade 10. The suction port must be equipped with at least a 100 μm (150 mesh) reservoir type filter and the return line must have a line filter of under 10 μm.
