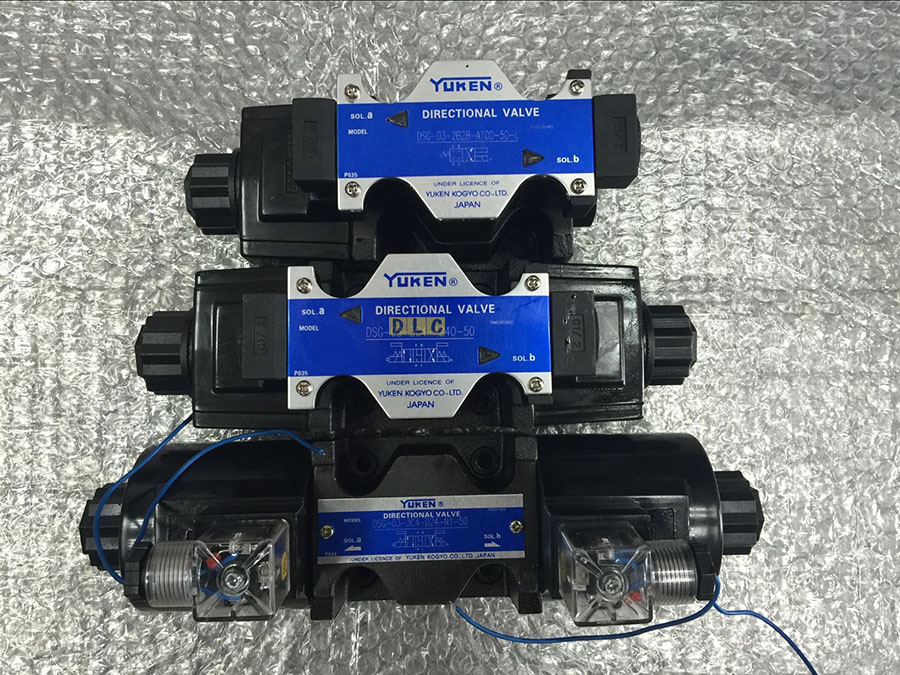

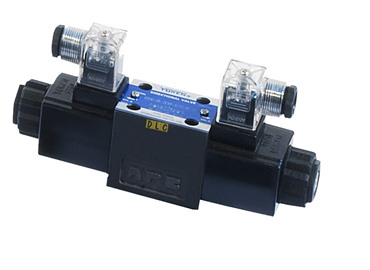

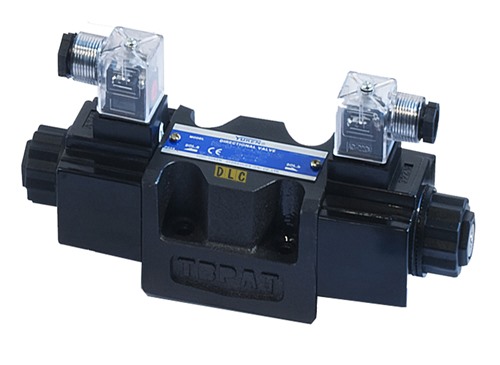

3/8 Solenoid Operated Directional control Valves, DSG-03 Series These are epoch-making solenoid operated valves of high pressure, high flow which have been developed incorporating a unique design concept into every part of the valve including the solenoid. With wet type solenoids, these valves ensure the low noise and the long life, moreover, ensure no leakage of oil outside of the valves.
● Wide Range of Models Choose the optimum valve to meet your need from a large selection available. The DSG-03 50 design series solenoid operated directional valves are classified into the two basic models.
● Standard type …. Useable at high pressure: 31.5 MPa (4570 PSI) and high flow: 120 L/min (31.7 U.S.GPM) ● Shockless type …. A noise at spool changeover and a vibration in piping can be reduced to a minimum.
● Stable Operation With a strong magnet and spring force, the valves are tough against contamination and thus ensure a stable operation. ● Usable in products of various standards CE/UL/CSA certified products are available.

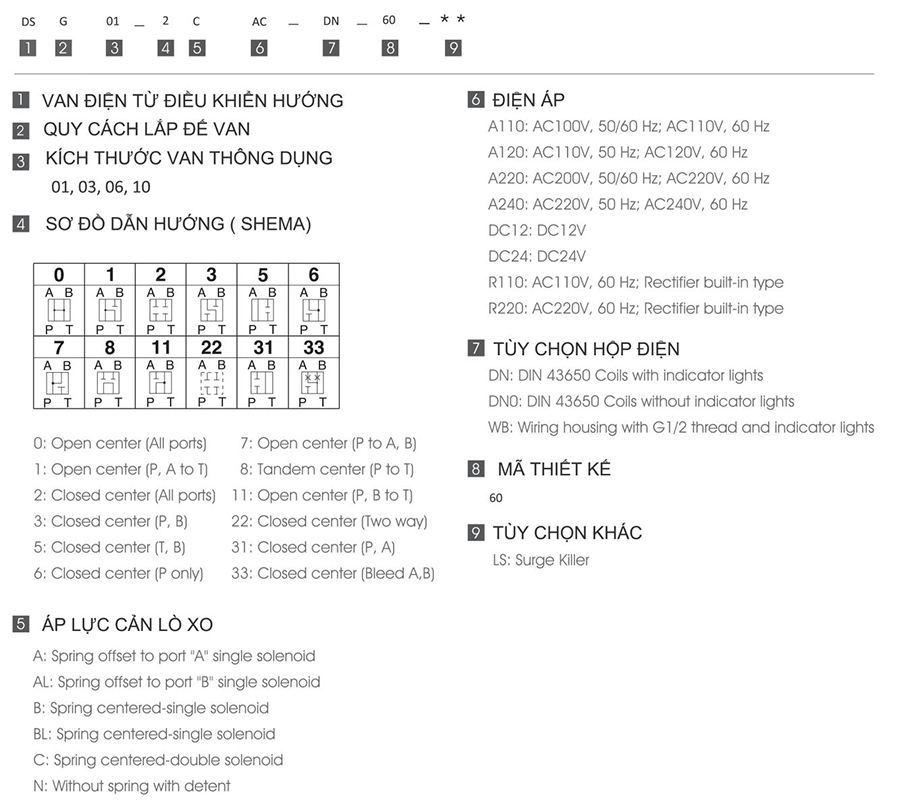

Order Code:
|
Áp lực tối đa
|
315 kgf / cm2
|
|
Lưu lượng
|
100 LPM
|
|
Áp lực dầu hồi tối đa
|
100 kgf / cm2
|
|
Điện kế hoạt động
|
240 C.P.M. (AC, DC)
|
|
Filteratiion recommended
|
25 Micron or less
|
|
Dầu thủy lực
|
Mineral oil, recommendation temperature 0 ~ 55° C
|
|
Max. temperature range -25 ~ 90 °C
|
|
Viscosity 10 ~ 400 cSt
|
|
Electric
Source
|
Coil Type
|
Voltage (V)
|
Current & Power at Rated Voltage
|
Weight(kg)
|
|
Source
Rated
|
HZ
|
Range
|
In-Rush
Current(A)
|
Holding
Current(A)
|
Wattage
(W)
|
|
A.C.
|
A 110
|
AC 100V
|
50
|
90 - 110
|
1.6
|
0.46
|
|
Single solenold : 3.3Kg
Double solenold : 3.9Kg
|
|
AC 110V
|
60
|
99 - 121
|
1.5
|
0.39
|
|
|
A 220
|
AC 220V
|
50
|
180 - 220
|
0.8
|
0.23
|
|
|
AC 220V
|
60
|
198 - 242
|
0.75
|
0.19
|
|
|
A 240
|
AC 220V
|
50
|
198 - 242
|
0.67
|
0.19
|
|
|
AC 240V
|
60
|
216 - 264
|
0.59
|
0.13
|
|
|
D.C.
|
D 12
|
DC 12V
|
10.8 - 13.2
|
2.2
|
2.2
|
26
|
Single solenold : 3.9Kg
Double solenold : 5.2Kg
|
.jpg)
